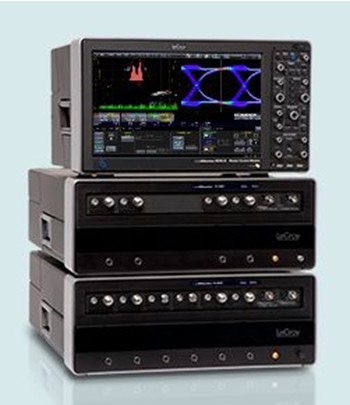

產(chǎn)品名稱：LabMaster 10 Zi 示波器
市場價：面議
優(yōu)惠價：面議
LabMaster 10Zi 示波器是世界上高帶寬的實時示波器-----65GHz帶寬和160GS/s采樣率。LabMaster 10Zi打破了通道障礙和提供了更多的寬帶密度。模塊化設(shè)計使其獲得更高的帶寬和更高帶寬通道的數(shù)量。再增加4個額外的采集模塊可同時獲得20個通道，每通道65GHz模擬帶寬。
- Up to 65 GHz
- Up to 80 Channels @ 36 GHz
- Up to 160 GS/s
- Up to 1024 Mpts/Ch
LabMaster 10 Zi modular oscilloscope systems completely re-define oscilloscope performance and capabilities.
-
Multi-channel operation at the highest bandwidths
- 40 channels @ 65 or 50 GHz
- 80 channels @ 36, 30, or 25 GHz
- Bandwidth and channel upgrade flexibility
- ChannelSync for precise synchronization of all acquisition modules
- Server-class CPU (33.6 GHz effective clock rate, up to 192 GB RAM)
- Ultra-low jitter noise floor (100 fs rms) and ultra-high time base stability.
- 5.2 ps (20-80%) rise time
- 14.1 Gb/s hardware serial trigger (28 Gb/s in development)
LabMaster 10 Zi leverages the unique LabMaster ChannelSync architecture with next-generation 8HP SiGe chipsets to produce the world’s highest bandwidth, four channel oscilloscope – 36 GHz. When combined with LeCroy’s patented DBI technology, bandwidth nearly doubles to 65 GHz, with sample rates of 160 GS/s. Truly extraordinary.
The LabMaster class of oscilloscopes are fundamentally better – they are modular, inherently upgradeable, and infinitely flexible while retaining all of the simplicity of operation that you expect from a conventional oscilloscope. LabMaster 10 Zi oscilloscopes can be configured for massive numbers of channels at up to 65 GHz – truly eliminating your technology and test barriers.
LeCroy’s ChannelSync architecture ensures precise synchronization of all acquisition modules. ChannelSyn ensures precise synchronization of all channels in all acquisition modules by using a single-distributed 10 GHz clock and a single trigger circuit. External clocking is not required, and trigger jitter from multiple trigger circuits is non-existent. Jitter between all channels is an ultra-low <275 fsrms,. Synchronization performance is identical to that provided with a single, standard oscilloscope package, and all captured waveforms and analysis appears on one oscilloscope display.
LabMaster 10 Zi is perfect for developed and emerging 10-12 Gb/s technologies, such as 40/100 GBASE-R Ethernet and SAS12, benefit from 80 GS/s on four (or more) channels at up to 36 GHz. Ultra-high speed technologies, such as CEI-25/28, CEI-56, and optical coherent modulation communication systems (DP-QPSK, 16-QAM, MIMO) benefit from the world’s fastest real-time bandwidth (65 GHz) and four or more channels. LeCroys SDAIII-CompleteLinQ Serial Data and Crosstalk Analysis software provides even more capability for simulataneous multi-lane eye, jitter, vertical noise and crosstalk analysis.
